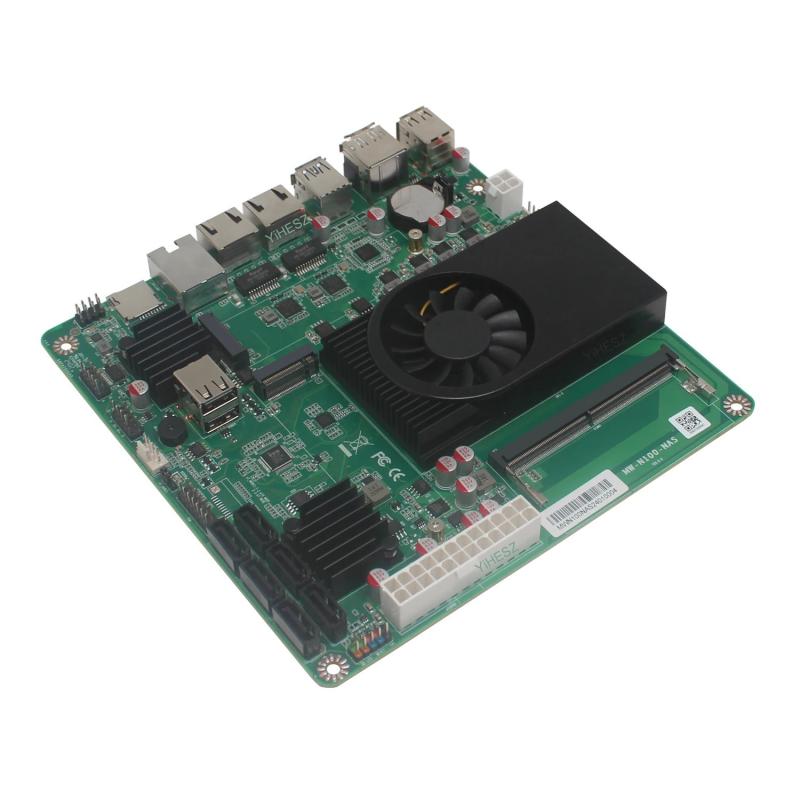

10G NAS Motherboard N100 6 SATA 2*2.5G 1*10G LAN 2*M.2 Nvme HDMI DP DDR5 6 Bays NAS Board 17*17 Mini ITX ALL IN ONE NAS Router

12000047229424832

10G NAS Motherboard N100 6 SATA 2*2.5G 1*10G LAN 2*M.2 Nvme HDMI DP DDR5 6 Bays NAS Board 17*17 Mini ITX ALL IN ONE NAS Router

+RAMs
+CPU
$495.01
Tax included
Quantity

Ask about the product on WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

N100 10G NAS Motherboard 6 SATA 2*2.5G 1*10G LAN 2*M.2 Nvme HDMI DP DDR5 6 Bays NAS Board 17*17 Mini ITX ALL IN ONE NAS Router

Note:
The motherboard parcel doesn't come with the button battery, when you receive the parcel, please buy a CR123 button battery to install on it.

If you select Motherboard+CPU+RAM option, it incluce 1 pcs DDR5 16GB 4800 RAM.

Features:
1、 Intel Alder Lake-N N100/N305 CPU
2、 3* LAN（2*Intel i226+1*10G）LAN Port
3、 Support HDMI+DP
4、 1*SO-DDR5 RAM，Max up 32GB
5、 1*USB3.0，6*USB2.0
6、 1*COM

Specification:
Processor: Intel Alder Lake-N N100 CPU
RAM: 1*DDR5 Slot，4800MHz，Max up to 32GB
Network: 3*LAN ( 2*Intel i226 2.5G+1*10G ）Support diskless boot and network wake-up
Display: 1*HDMI+1*DP，Support synchronous or asynchronous display.YiHESZ
Storage: 6*SATA3.0，2*M.2(NVME)
I/O port:
3*LAN ( 2*Intel i226 2.5G+1*10G LAN Port）
1*HDMI
1*DP
1*USB3.0
1*TYPE-C（Full Function）
2*USB2.0
1*TF_CARD
Inner I/O Port:
1*COM
2*USB2.0 (pin），2*USB2.0
6*SATA3.0
2*M.2(NVME)
1*FP，1*TPM
1*CPUFAN，1*SYSFAN
Watch dog: 0-255S ， System Reset
SystemWin10，LINUX
Power supply: ATX 24Pin+4Pin Power supply
Temperature:
Storage temperature： -20℃ -70℃
Operating temperature： -0℃ -60℃
Size: 170mm*170mm









Product Details
12000047229424832

Data sheet

Hign-concerned Chemical
None
Brand Name
YiHESZ
Origin
Mainland China
Package
Yes
Application
Desktop,Laptop,Server,Workstation,Mining,Industrial computer
RAID Supported
YES
Processor compatibility
Intel Pentium
Usage Scenario
Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Industrial computer,Workstation,Server,Mini PC,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC
Back I/O Ports
2x RJ45,4 x USB 2.0,Thunderbolt 2,HDMI 2.0
Support USB Type
USB 2.0,USB 3.0
Onboard LAN
3x RJ45
Number of M.2
2
Storage Interface Type
SATA 3,M.2 (NVMe)
Number of PCI
0
Number of PCIe x 1
0
PCI - E standards
PCI - E 3.0
Number Of Memory Slots
1
Support Memory Type
DDR5
Maximum Ram Capacity
32 GB
Form Factor
Mini-ITX
Chipset Manufacturer
Intel
With CPU
Yes
Chipset
Intel Others
Socket Type
Onboard CPU
Number of SATA Ports
6
Max LAN Speed
10000Mbps
Supports M.2 SSD
2280
Number of PCIe x 4
0
Number of PCIe x 8
0
Audio Channels
2.1
Ports
Ethernet
Special Features
None
Onboard Connectors & Header
24-pin Main Power Connector,CPU Fan Connector(s),USB 3.1 /3.2 Gen 1 Connector,SPI TPM Header,PWR_FAN Connector,USB 3.0 Connector,Thunderbolt Header(s),USB 2.0 Connector,COM Port Header
SATA RAID
0,1,5,10
