Because the picture was not updated in time, the new version of X79 only has 6 USB 2.0 ports, please note that the actual product shall prevail.
Features:
100% new, high quality!REG The ECC server memory supports NVME M.2 SSD.
High compatibility, rich experience.All solid capacitor, fine workmanship, professional stability.Power sockets have 8-pin and 24-pin power connectors.

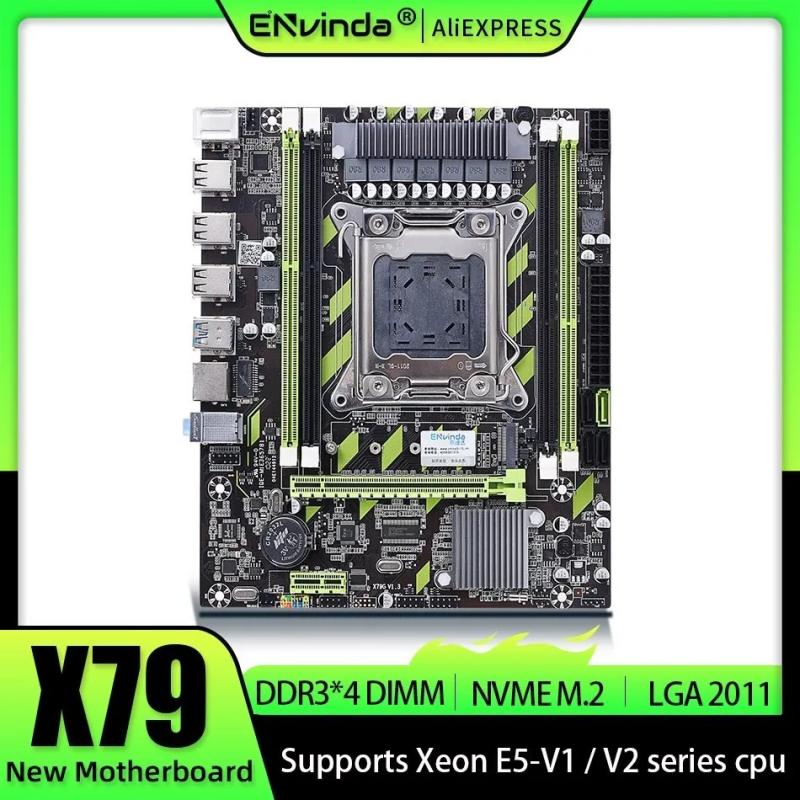

Main chip :X79
Model: envinda
The CPU slot: LGA2011 DDR3
Memory slot :Double channel four slots
Supported memory type: non-ECC /REg ECC/ECC (Server RAM does not support desktop RAM, which has compatibility issues)
Graphics card slot :1*PCI-E X16
Power supply port :1 x 8PIN 1 x 24PIN
Nic port: 100M NIC
Maximum memory capacity :64GB
SATA ports :4 x SATA2.0
USB port :6 x USB 2.0
PS/2 interface :1*PS keyboard interface
Application type: Desktop
Motherboard architecture :Mini-ATX
Chip: H61 / Q67/X79
CPU slot type :INTEL 2011
CPU type: E5 2011 V1, V2, C1 and C2 (Xeon E5/2620/2630/2640/2650/2660/2665/2670/2680/2689/2690/1650/1660 C2, V2)
Onboard sound card: Integrated sound card
Motherboard size :235 * 185 mm
Product List :1 * motherboard, 1* SATA line, 1* baffle, 1* CPU cooler mounting bracket
Note:
1: Different batches of groove bottom plate color may be different, but will not affect the use of the product.Products are constantly optimized and upgraded.
2: Due to manual measurement, please allow 1-3mm difference.
3: Because the display is different, the light is different, the picture may not show the actual color of the object.Thank you for your understanding.
This motherboard needs a power source that consumes a lot of power.Make sure your power supply is sufficient to support this motherboard.(at least 500W brand power supply)
4: The battery in the picture of the motherboard will be removed before shipment, because CN post and Customs prohibit the use of batteries.
As for customs duties, please make sure you can handle customs clearance by yourself.If you can't solve it, we don't recommend buying it from us.We are not responsible for customs duties.Thank you for your understanding!
5: If you use i7 series processors, please don't use reg ecc simultaneously, since they are incompatible with each other.
