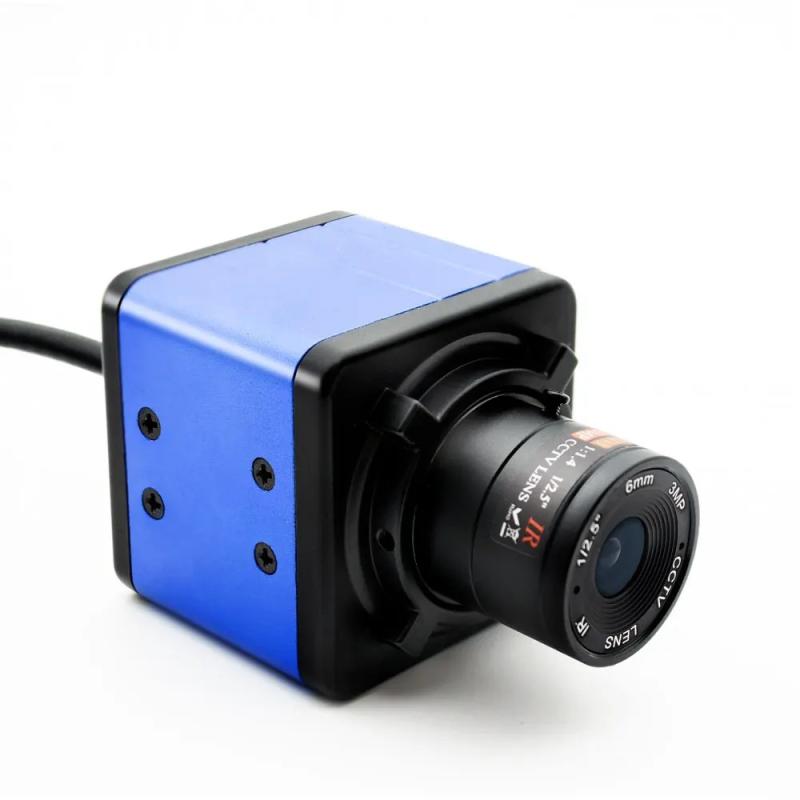

WGWK 4K Mini POE IP Camera CMOS Sensor Security Industrial CCTV Video 3/4/5/8MP Metal Box Network Camera with 6mm 2.8-12mm Lens

12000040675278718
Rating

WGWK 4K Mini POE IP Camera CMOS Sensor Security Industrial CCTV Video 3/4/5/8MP Metal Box Network Camera with 6mm 2.8-12mm Lens

Plug Type
Sensor Size
Focus
$68.90
Tax included
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description



Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.



Note: The 10x zoom defaults to 6-60mm CS Mount lens


CS Lens option: 2.8mm,4mm,6mm,8mm,12mm,16mm,25mm,2.8-12mm,3.6-10mm,5-50mm,6-60mm,5-100mm


WGWK 4K Mini POE IP Camera CMOS Sensor Security Industrial CCTV Video 3/4/5/8MP Metal Box Network Camera with 6mm 2.8-12mm Lens







Note: Supports replacement of filters of other specifications. Available models include Narrowband 650nm/740nm/780nm/808nm/850nm/905nm/940nm/980nm, 700nm long wave pass, Infrared 650nm/850nm/940nm

If you need it, please contact customer service in time!




Contact customer service to change the color of the camera housing (black)

And get a free camera stand when you purchase two or more



Superior image quality and flexibility for your surveillance system

This mini camera is ideal for precise monitoring. It combines high resolution, zoom lens and convenient POE power supply technology to help you easily achieve remote HD monitoring.





3/4/5/8MP HD resolution: Provides ultra-clear, detailed images to ensure that every corner of the surveillance can be accurately captured.

2.8-12mm zoom lens: Flexible adjustment of focal length to achieve accurate monitoring at close or long distances to meet the needs of different scenarios.

POE 48V power supply: Direct power supply through Ethernet cable, simplifying wiring work, reducing installation costs, and improving stability.

Strong durability: High-quality materials and design ensure stable operation of the device in various environments.

Whether indoors or outdoors, this mini camera can provide excellent visual effects for your security system and easily meet your high-quality monitoring needs.


Why H.265?


H.265 is a new video coding standard that delivers higher-quality network video with limited bandwidth, requiring only half the original bandwidth to play the same quality video.


Specification

3/4/5/8MP

System structure

Embedded RTOS design, dual-core 32-bit DSP(NT98566), pure hard compression

Sensor

8MP black light CMOS sensor; Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2
5MP 1/2.8" SC52395 low illumination CMOS sensor; Color 0.01Lux@F1.2, black and white 0.001Lux@F1.2

Video processing

H265AI/H.265+(compatible with H.265/H.264) encoding, dual stream, AVI format;
The stream is adjustable from 0.1M to 10Mpbs: the frame rate is adjustable from 1-30 frames per second

Image output

Main stream: 8MP 3840*2160@15fps; 5MP 2880*1616@25fps;4MP 2560*1440@25fps;3MP 2304*1296@25fps;2MP 1920*1080@25fps;
Substream: 800*448@25fps

Shutter

1/50(1/60) second to 1/10,000 second

Lens

Focal length and zoom lens, optional (2.8mm/4mm/6mm/8mm/12mm/16mm/25mm/2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm)

Day-night switching mode

Support IR-CUT, IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V

Noise reduction

Support 2D/3D noise reduction

Wide dynamic

Supports digital wide dynamic

Audio processing

G.711A COdec standard, supporting audio and video synchronization

Audio interface

1 input, level 2Vp-p, resistance 1kΩ, support pickup input; 1 channel output, resistance 16kΩ, 30mw output power, support to connect headphones or public amplifier

Network interface

1 RJ45 Ethernet interface, 10/100M adaptive; Support network protocols such as RTSP/FTP/DHCP/NTP/UPnP (combined with power interface)

Signal interface

1 photoresistor interface, 1 IR-CUT driver interface, support photoresistor input signal and IR-CUT, infrared lamp linkage

Intelligent analysis

Supports humanoid detection, face detection, and customization of other intelligent functions

Business function

Support WEB configuration, OSD, motion detection; Mobile detection alarm center reminder, screen pop-up linkage; Support MJPEG capture; Support client remote monitoring software, MYEYE platform and other system applications; Provide complete SDK development kit

ONVIF protocol

support

Mobile phone surveillance

Support mobile monitoring (iOS, Android)

Power source

Power supply DC12V/2A, power consumption ≤3W

Plate size

38mm*38mm

Instructions

Support POE power supply, light board drive voltage at 3.3V

Rreliability

Comprehensive lightning protection, in line with national and international standards; 7*24 hours -10℃~65℃ high temperature test stable and reliable (including the whole machine test)




About RTSP

Address stream:

Enter the network URL in Please enter network URL:

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57  This is the IP of the connected device

:554 This is the port number of the RTSP service, which can be changed in the device's network service

user=admin This is the login user name for the device

password= Password blank

channel=1 First channel

stream=0.sdp?Main code stream

stream=1.sdp?Auxiliary code stream

rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?

10.6.3.57 is the device IP address

:554 is RTSP port,can reset in device network service

user=admin is device user’s name

password= no pass word

channel=1 refer to Channel No.1

stream=0.sdp? mainstream

stream=1.sdp? substream


About computer operation and use

Make sure the camera is connected to the power supply and network

(the signal light flashes to prove that everything is normal)


Step 1 : Install VMS

VMS Computer Client: https://download.xm030.cn/d/MDAwMDE2OTA=

Step 2: Login VMS

UserName: admin,Password:admin



Step 3: Find your camera and add





APP download: Search XMEye in Apple Store








Product Details
12000040675278718

Data sheet

Hign-concerned Chemical
None
Brand Name
WGWK
Origin
Mainland China
Certification
CE,FCC,RoHS
Style
Mini Camera
Zoom
10x
Color
Red,Blue
Connectivity
IP/Network Wired
is_customized
Yes
Power supply
With POE
Installation
Ceiling,Embedded,Wall Mounted
SENSOR
8MP black light CMOS sensor Color 0.0001Lux@F1.2, black and white 0.0001Lux@F1.2 5MP 1/2.8" SC52395 low illumination CMOS sensor Color 0.01Lux@F1.2, black and white 0.001Lux@F1.2
CMOS
Power Source
Power supply DC12V/2A, power consumption ≤3W
Noise Reduction
Support 2D/3D noise reduction
Audio Output
None
Power Mode
Mains Electricity
Video compression format
H.264,H.265
Zoom Type
Digital zoom
lens
Focal length and zoom lens, optional
Operating Temperature
-30°+-60°
Shell Material
Metal
TF card
None
Specification
3/4/5/8MP
Scene
Indoor
Internal Storage
None
Lens Quantity
Single lens
AI Functions
Face Comparison
Color Night Vision
No
Megapixels
8MP
Dimensions (L x W x D)(mm)
50mm x 50mm
Power Supply(V)
DC12V/POE48V
Alarm Action
FTP Photo
Supported Mobile Systems
Android,IOS
Supported Operating Systems
Windows 98,Windows XP,Windows vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
Lens (mm)
2.8-12mm,6mm
High Definition
8.0 Megapixels
Network interface
1 RJ45 Ethernet interface, 10/100M adaptive Support network protocols such as RTSP/FTP/DHCP/NTP/UPnP combined with power interface
ONVIF protocol
support
Video processing
H265AI/H.265+ compatible with H.265/H.264 encoding, dual stream, AVI format The stream is adjustable from 0.1M to 10Mpbs: the frame rate is adjustable from 1-30 frames per second
Image output
Main stream: 8MP 3840*2160@15fps 5MP 2880*1616@25fps 4MP 2560*1440@25fps 3MP 2304*1296@25fps 2MP 1920*1080@25fps Substream: 800*448@25fps
Day-night switching mode
Support IR-CUT, IR-CUT coil internal resistance of 20 Ohm, power duration less than 200ma, voltage 3.5V-6V
Intelligent analysis
Supports humanoid detection, face detection, and customization of other intelligent functions
Business function
Support WEB configuration, OSD, motion detection Mobile detection alarm center reminder, screen pop-up linkage Support MJPEG capture Support client remote monitoring software, MYEYE platform and other system applications Provide complete SDK development k
Plate size
38mm*38mm
Instructions
Support POE power supply, light board drive voltage at 3.3V
Rreliability
Comprehensive lightning protection, in line with national and international standards 7*24 hours -10℃~65℃ high temperature test stable and reliable
