MOUGOL New X79 Motherboard with Intel Xeon E5 2630 V2 CPU Kit & Dual Channel DDR3 ECC RAM 1600MHz USB3.0 SATA2 Computer Combo

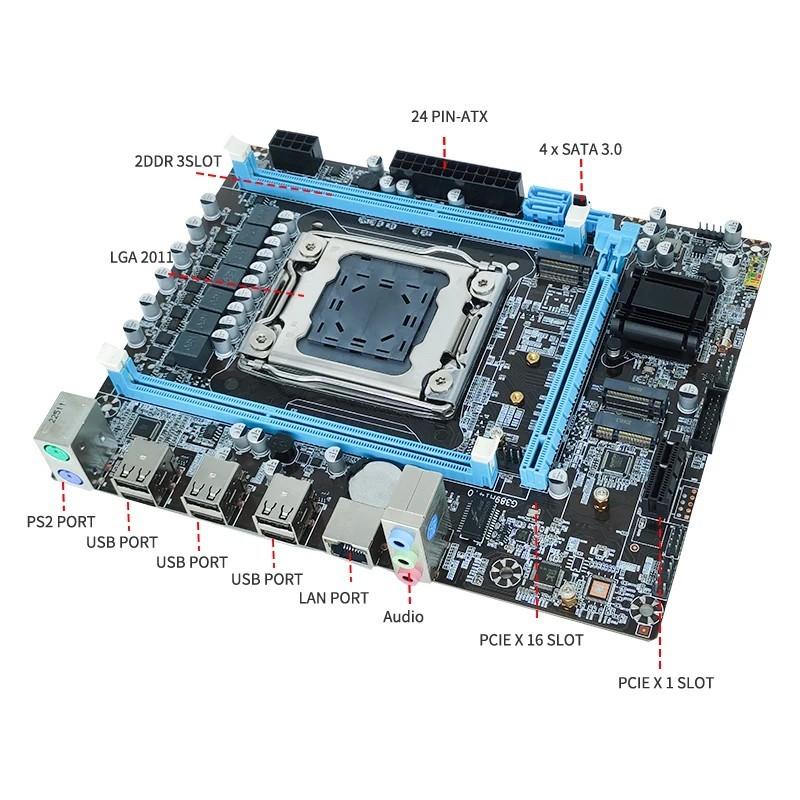

[Motherboard]：MOUGOL X79 D3 motherboard

[CPU]：1*Intel Xeon E5 2630 V2 CPU

[RAM]：1*DDR3 ECC 16G 1600MHz

CPU:

Processor Series: Intel Xeon

Model number: E5 2630 V2

Processor Speed: 2.6GHz

Maximum core frequency: 3.1GHz

Processor Socket: LGA2011

Process: 22nm

Memory type: DDR3 1066/1333/1600/1866MHz

The number of CPU cores: 6

The number of threads: 12

L3 cache size (MB): 15 MB

Wattage: 80 Watts cpu will be final double tested before shipping

Specifications:

Ethernet: 1 Realtek Gigabit Ethernet card

Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)

USB Port: 6 USB ports 2 0 interface;

PCIE: 2 (1 PCIE X16, 1 PCIE X1)

USB ports: 4 (one USB port can be connected to two USB 2.0 ports)

Internal connectors

SATA interface: 3 SATA interfaces (1 SATA3 0.2 SATA2.0)

ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket

Audio: 1 2x5PIN pin

Jlpc: 1 2x5pin battery

M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2)

M-ATX【215 x 170】mm Note: (1) Please allow 1-3mm differs due to manual measurement. (2) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. (3) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply). (4) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements. # # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situ
