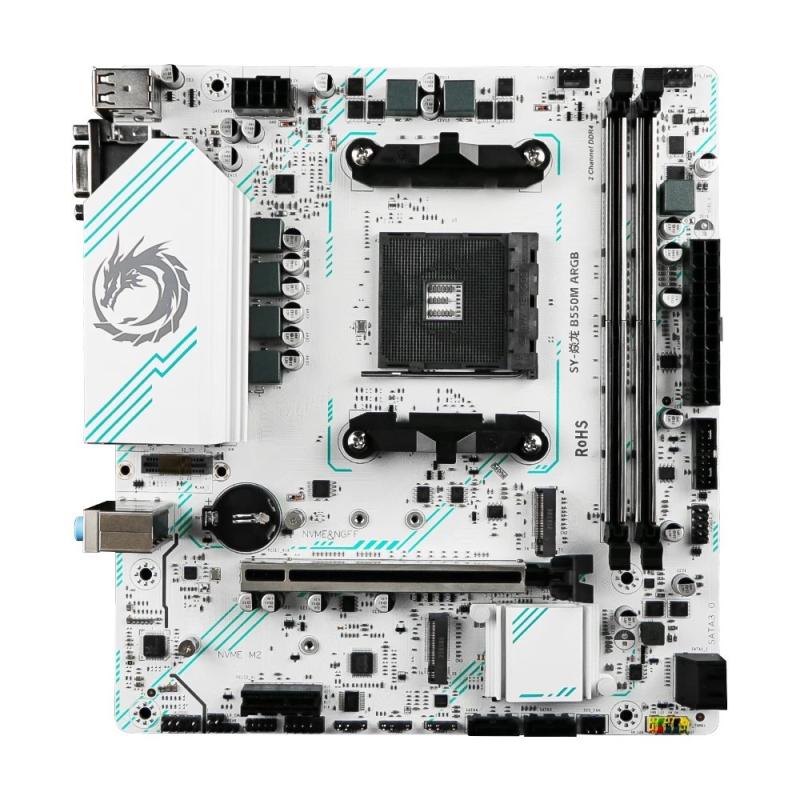

SOYO World Premiere AMD B550M Gaming Motherboard USB3.2 PCIE3.0 M.2 NVME Dual Channel DDR4 AM4 Socket supports Ryzen 5700X CPU

12000047018663997
Rating

SOYO World Premiere AMD B550M Gaming Motherboard USB3.2 PCIE3.0 M.2 NVME Dual Channel DDR4 AM4 Socket supports Ryzen 5700X CPU

Bundle
$90.10
Tax included
Quantity

Ask about the product on WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Specification

Motherboard chip: AMD B550
CPU: Support AMD Ryzen 3000 (excluding G) series/4000, 4000G series/5000, 5000G series processors
Memory: DDR4*2 dual channel; support 2133/2400/2666/3000/3200/3600MHz (OC+), support XMP, maximum support 64G (32G*2)
Storage: 2* M.2 slot (CN2: PCIE4.0 X4/SATA 3.0) (CN3: PCIE3.0 X4); 4*SATA 3.0 interface
Display interface: 1*HDMI 2.0 interface, 1*VGA interface
Network: 1*RJ45 interface
Network card chip: Realtek RTL8111H Gigabit network card chip
PCIE slot: 1*PCIE X16 slot (PCIE4.0 X16) ; 1*PCIE X1 slot (PCIE3.0 X1); 1*WIFI slot (PCIe protocol)
Audio: 1*Line out; 1*MIC In; 1*Line In; 1*F_Audio built-in pin
Audio chip: Realtek ALC897 high-definition audio chip
IO interface: 4*USB3.2 GEN1 (5Gbps), 4*USB2.0
Built-in pins: 1 set of USB2.0 pins (can be expanded to 2 USB2.0 ports); 1 set of USB3.0 pins (can be expanded to 2 USB3.0 ports); 5Gbps
Function pins: 1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin+ 1*3Pin SYS fan; 1*4Pin Speak pin; 2*5Pin COM pin; 2*5Pin Debug pin; 3*5V 3PIN ARGB pin
Power input: 24Pin+8Pin ATX power socket
Others 1*CLR CMOS 2PIN pin









Product Details
12000047018663997

Data sheet

Hign-concerned Chemical
None
Brand Name
SOYO
Origin
Mainland China
Package
Yes
Application
Desktop
RAID Supported
YES
Processor compatibility
AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3
Usage Scenario
Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Scientific Computing
Back I/O Ports
1x RJ45,VGA(D-Sub),3 x Audio Jacks,4x USB 3.2/3.1 Gen 2,4 x USB 2.0,HDMI 2.0
Support USB Type
USB 2.0,USB 3.2 Gen1
Onboard LAN
1x RJ45
Number of M.2
2
Storage Interface Type
SATA 3,M.2 (NVMe)
Number of PCI
3
Number of PCIe x 1
1
Number of PCIe x 16
1
PCI - E standards
PCI - E 4.0
Number Of Memory Slots
2
Support Memory Type
DDR4
Memory channel
Double
Maximum Ram Capacity
64 GB
Form Factor
Micro-ATX
Chipset Manufacturer
AMD
With CPU
No
Chipset
AMD B550
Socket Type
AM4
Number of SATA Ports
4
Max LAN Speed
1000Mbps
Supports M.2 SSD
2242,2280
Ports
PCI-Express X1
Special Features
RGB,Cooling Armor
Onboard Connectors & Header
24-pin Main Power Connector,CPU Fan Connector(s),Chassis(SYS) Fan Connector(s),RGB Header,8-pin +12V Power Connector
SATA RAID
0
