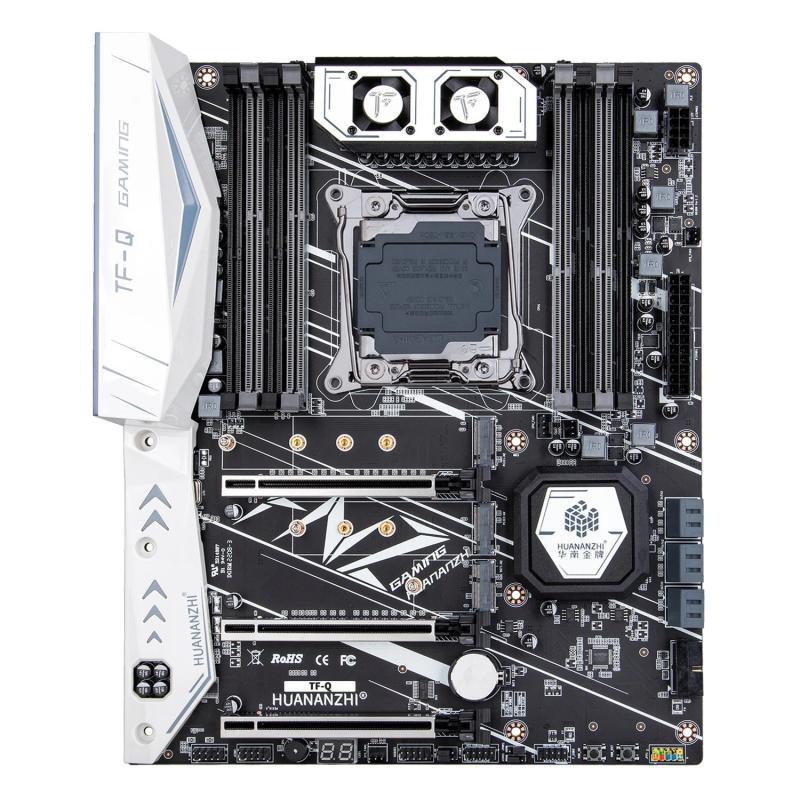

HUANANZHI X99 TF Q LGA 2011-3 XEON X99 Motherboard ATX Intel XEON E5 LGA 2011-3 All Series both DDR3 DDR4 RECC NON-ECC memory
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Specifications:
Model:HUANANZHI TF-Q Motherboard
CPU Socket:support Intel LGA2011-3 Platform processor
Main chipset: Q87 ... Etc chipset shipped randomly
Memory Socket:4*DDR4,4*DDR3,Support server memory(DDR3 memory must be used with Zhiqiang E5 2678v3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)
Memory Standard:Support four channels DDR3 1866/1600/1333MHz,DDR4 2400/2133/1866MHz,D3 / D4 can support 128GB at most, while D3 / D4 cannot be used at the same time
SATA Inderface:6*SATA3.0 6Gb/s
Extended Inderface:1*M.2 22110 NVME PCIE X4 3.0 32Gb/s;1*M.2 2280 NVME PCIEX4 2.0 20Gb/s ;1*M.2WIFI NGFF
Expansion Slots:2*PCIExpress3.0x16;1*PCIExpress3.0x4
Soud Track:7.1
Network interface:Gigabit Ethernet:
Power interface:24pin+8pin
Fan interface:1*CPU_FAN PIN;3*SYS_FAN PIN

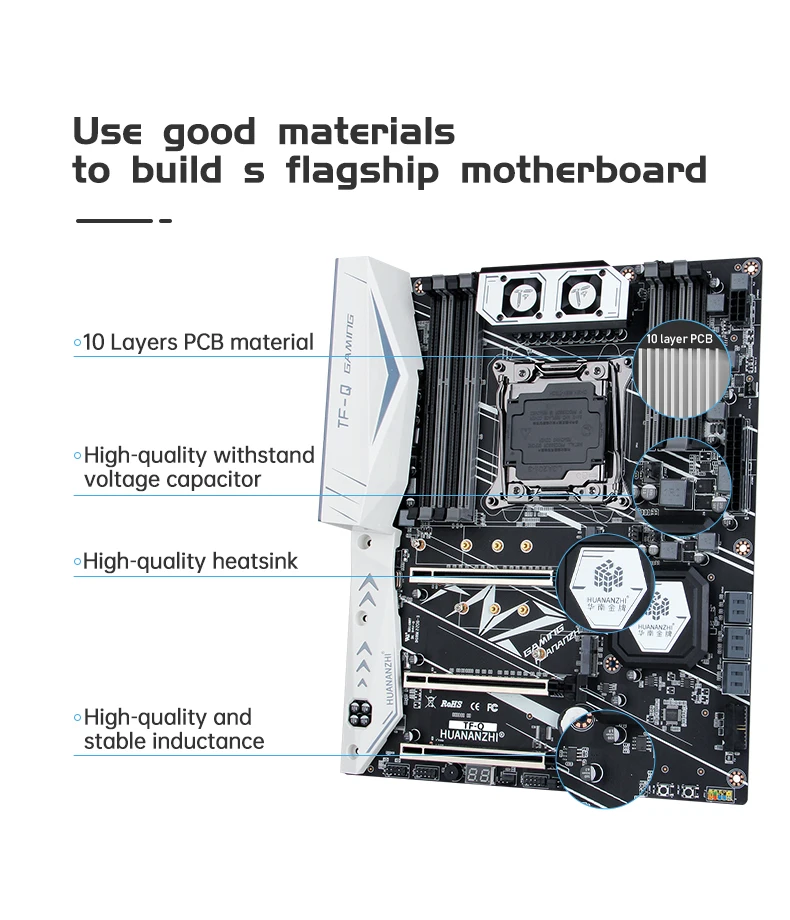

PCB layer:10 layer,6-phase power supply
Rear panel interface:1*PS/2 Keyboard mouse interface;4*USB2.0;4*USB3.0;1*network interface;1*5-hole audio interface;1*Audio optical fiber interface (integrated on audio interface)
Front panel interface:2*USB2.0 PIN(One group controls the WiFi Bluetooth function by jumping the hat);1*USB3.0 PIN;1*Front audio pin;1*COM PIN;1*Mainboard buzzer;1*post card;1*Start / restart button
support system:windows7,windows10,windows11,
Motherboard specification:300*244MM ATX
Motherboard does not support RGB
