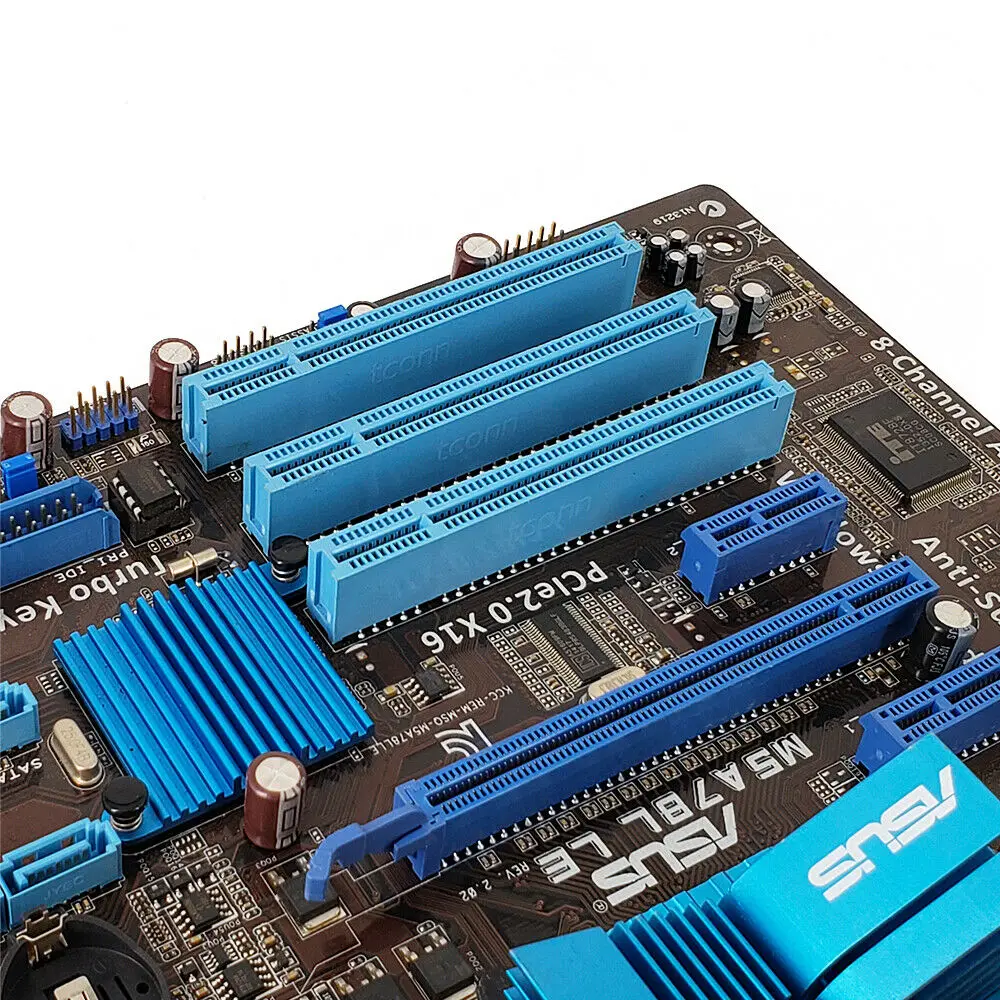

Asus M5A78L LE Original Desktop Motherboard AMD 760G Socket AM3+ DDR3 32G SATA2 USB2.0 ATX

Integrated chip sound card/network card

Main Chipset AMD 760G

Chipset Description AMD 760G North Bridge + SB710 South Bridge Chipset

Audio chip Integrated Realtek ALC887 8-channel sound chip

Network card chip Onboard Realtek RTL8111E Gigabit network card

Processor Specifications

CPU type AMD FXPhenom II/Athlon II/Sempron 100

CPU socket Socket AM3/AM3+

CPU description Support AMD 125W processor

Memory Specifications

Memory type 2×DDR3 DIMM

Maximum memory capacity 16GB

Memory description Support dual-channel DDR3 2000 (overclock)/1866 (overclock)/1800 (overclock)/1600 (overclock)/1333/1066MHz memory

storage expansion

PCI-E Standard PCI-E 2.0

PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot

PCI slot 3×PCI slot

Storage interface 6×SATA II interface

I/O interface

USB interface 10×USB2.0 interface (6 built-in + 4 backplane)

Power connector one 4-pin, one 24-pin power connector

Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface

plate type

Mainboard form factor ATX form factor

Dimensions 30.5×20.3cm
