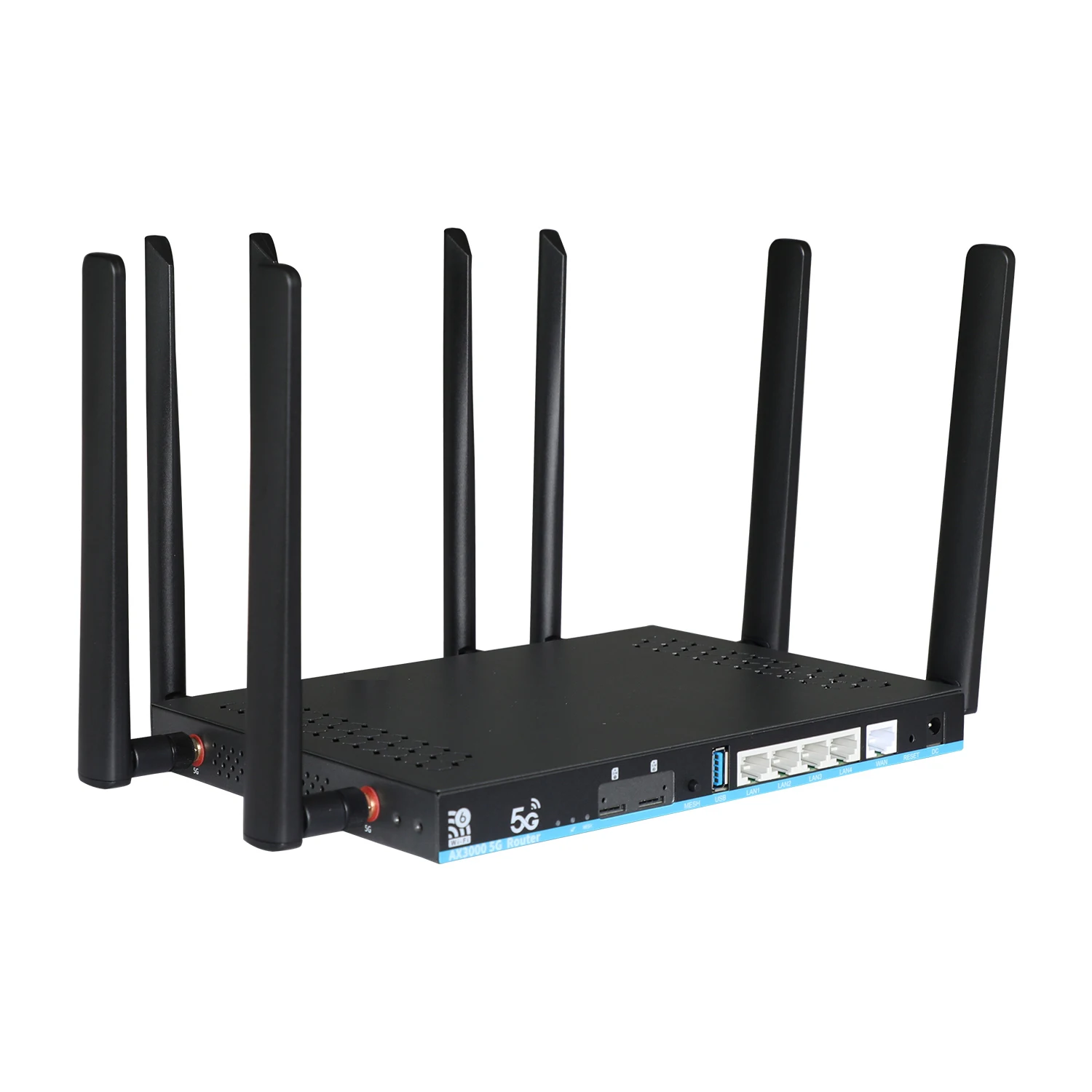

Dual SIM Card 5G Home Router Wifi6 5g Module 3000Mbps Openwrt Firmware
USB3.0 4*1000Mbps LAN 1*WAN 8/12 Antennas 4T4R MU-MIMO, 2.4Ghz 5GHz Wifi for 256 user
【 PS: The "NO 5G Modem No WIFI" come does not contain any modems, you need to buy a 5G modem to install. That you can insert the SIM card. 】
【 If you want to use 2 SIM cards, you must purchase/install 2 identical modules. Similarly, one module can only use one SIM card 】
How to choose the correst product?
● Select modem for Europe and Asia: "5G RM500U" 5G module for Asia Europe version:
"5GNR NSA:n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76/ 77/ 78
5GNR SA ： n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76/ 77/ 78
LTE-FDD : B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71
LTE-TDD : B38/ 40/ 41/ 42/ 43
WCDMA :B1/ 5/ 8"
●Global modems: “5G RM520N-GL”： Global 5G module:
"NSA：n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79
SA：n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD B34/B38/B39/B40/B41/B42/B43/B48"
Bundle Situation (Important!!!)NO SIM NO 5G Modem : Wireless router with SIM card slot, but does not support SIM card.
1. Relevant standards and specifications:
① Support IEEE802.11N/G/B/a/ac/ax, IEEE802.3/802.3u/802.ab network protocol, the max transmission rate could be 3000Mbps
② 5*10/100/1000 Mbps Auto MDI/MDIX
③ Independent WIFI6 MT7981B chip, supporting smooth connection of 256 devices
④ Support 4G/5G function (It is need install 4G/5G module inside of router)
⑤ Built in 2*M.2 interfaces, expandable 5G communication function, supporting USB 3.0 and USB 2.0 buses
2. Main Features:
● Adopting MT7981B chip, ARM Cortext-A53 dual core CPU, with a main frequency of up to 1.3GHz
● Dual band 2.4ghz 5ghz concurrent wireless rate up to 3000mbps
● Support MU-MIMO, and WiFi modulation mode supports 1024-qam and OFDMA, Can connect 256 WiFi users
● Supporting IPv6 technology, with larger address space, improve the forwarding efficiency of WiFi 6 router
● Each WiFi channel is independently equipped with high-power FEM, which is combined with high gain antenna to achieve super WiFi coverage
● High speed 1GB DDR4 , paired with 128MB SPINAND Flash
● Supporting mesh one click technology, intelligent networking, plug and play
● Full 1000Mbps adaptive network interface of 1 WAN and 4 LAN, supporting automatic flip (auto MDI / mdix)
● Built-in two m.2 interface is used to connect 5g/4G module, and the module power supply is independently controlled through GPIO
3. Package List:
1 X Z8102AX-T Router
1 X Power adapter
1 X User Manual
