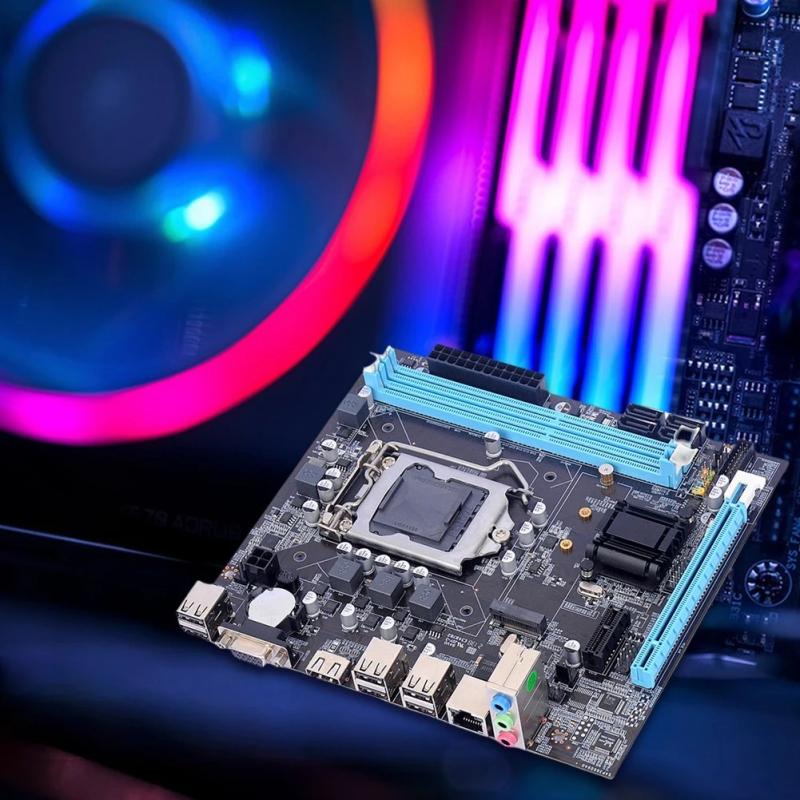

H61 Motherboards LGA 1155 DDR3 Memory 16GB M-ATX Desktop Mainbord For LGA1155 Socket Core i3 i5 i7 CPU HD VGA Main Board

H61 Motherboard 16GB Micro-ATX PC Main Board LGA1155 Socket I3/I5/I7 CPU 4 X SATA 2.0 Realtek 10/100 Mbps LAN Onboard for Office
Feature:
1.Broad CPU Compatibility: This motherboard supports Intel LGA1155 Socket I3/I5/I7 series CPUs, providing outstanding computing performance that caters to your specific needs.
2.Powerful Chipset: This desktops motherboard features the Intel H61 Express chipset, providing stable performance and reliable data transmission for your system.
3.Large Memory Capacity Support: This computer mainboard comes equipped with two 240-pin DDR3 SDRAM slots that support up to 16GB of memory capacity. The dual-channel DDR3 1066/1333/1600 MHz technology provides fast memory access and enhances multitasking capabilities, allowing you to work more efficiently.
4.Versatile Input/Output Interface: This desktop PC main board provides six USB 2.0 ports, one VGA port, one HDMI-Compatible port, one RJ45 port, and one 3-in-1 audio jack (line in/line out/mic in).
5.Robust Expansion Capability: This desktop computer motherboard boasts a PCI Express x16 slot, a PCI Express x1 slot, and an M.2 Nvme/NGFF slot, providing robust expansion and upgrade capability. The robust expansion capability allows you to add independent graphics cards, expansion cards, and other peripherals that cater to your specific needs.




Specification:
Application: Desktop
CPU: Supports LGA1155 Socket I3/I5/I7 series CPU
Chipset: Intel H61 Express Chipset
Memory: 2*240-pin DDR3 SDRAM slots; Memory up to 16GB; Supports dual channal DDR3 1066/1333/1600 MHZ
I/O interface: 6xUSB2.0; 1x VGA port; 1x HDMI-Compatible port; 1x RJ45 port; 1x 3-in-1 Audio port(line in/line out/MIC in)
Onboard interface: 1x 24-pin ATX power connector; 1x 4-pin ATX 12V power connector; 2x USB connector, can support 4*USB 2.0; 1x F-AUDIO connector; 1x F-PANEL connector; 1x F-SPEAKER connector; 1x FAN connector; 1x LPC-DEBUG connector
Integrated sound: Realtek ALC 6-channal HD Audio Codec onboard; provides front audio interface; provides front stereo mic interface
Storage: 4 x SATA 2.0 (3GB/s) ports
Integrated lan: Realtek  10/100 Mbps LAN onboard (1000Mbps optional)
Expansion slot: 1x PCI Express x16 slot; 1x PCI Express x1 slot; 1x M.2 Nvme/NGFF slot
Size: Micro-ATX architecture (17x19cm/6.69x7.48in)

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Motherboard
1 x Baffle
1 x SATA Data Cable
