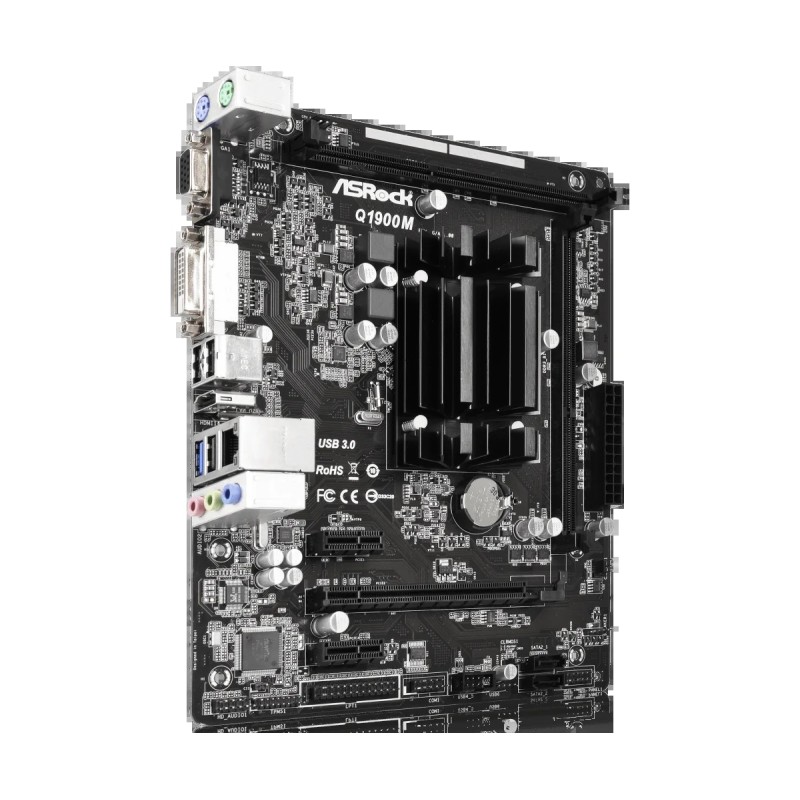

Q1900M integrated J1900 quad-core CPU low power DDR3Random selection of multiple brand appearances

12000029282180850
Valoración

Q1900M integrated J1900 quad-core CPU low power DDR3(Random selection of multiple brand appearances)

Bundle
$95,39
Impuestos incluidos
Cantidad

Pregunta sobre el producto en WhatsApp
  Política de seguridad

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de entrega

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de devolución

(editar con el módulo de Información de seguridad y confianza para el cliente)

Descripción

This model motherboard is very picky about the memory brand capacity. Please ensure that you are using a memory model and brand that meets the manufacturer's requirements:








  • Intel® Quad-Core Processor J1900 + Micro ATX Motherboard

  • All Solid Capacitor design

  • Supports DDR3/DDR3L 1333 Long DIMM

  • 1 PCIe 2.0 x16, 2 PCIe 2.0 x1

  • Graphics Output Options : D-Sub, DVI-D, HDMI

  • Built-in Intel® 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0

  • 1 Print Port Header, 1 COM Port Header

  • 1 USB 3.1 Gen1, 6 USB 2.0 (3 Front, 3 Rear), 2 SATA2

  • Realtek Gigabit LAN

  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

  • Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key

  • Unique Feature
    - ASRock Full Spike Protection
    - ASRock Cloud
  • CPU
    - Intel ® Quad-Core Processor J1900 (2 GHz)
  • Memory
    - Dual Channel DDR3/DDR3L Memory Technology
    - 2 x DDR3/DDR3L DIMM Slots
    - Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
    - Max. capacity of system memory: 16GB*
    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation.

    **If only one DIMM module is installed, please install it into DDR3_A1.
  • BIOS
    - 64Mb AMI UEFI Legal BIOS with GUI support
    - Supports Plug and Play
    - ACPI 5.0 Compliant wake up events
    - Supports jumperfree
    - SMBIOS 2.7 Support
  • Graphics
    - Intel ® 7 th generation (Gen 7) graphics
    - DirectX 11.0, Pixel Shader 5.0
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports HDCP with DVI-D and HDMI Ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
  • Audio
    - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
    - Supports Surge Protection (ASRock Full Spike Protection)
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111GR
    - Supports Wake-On-WAN
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    - Supports LAN Cable Detection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
    - 2 x PCI Express 2.0 x1 Slots
  • Storage
    - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  • Connector
    - 1 x Print Port Header
    - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Chassis Intrusion Header
    - 1 x CPU Fan Connector (3-pin)
    - 1 x Chassis Fan Connector (3-pin)
    - 1 x 24 pin ATX Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  • Rear Panel I/O
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone



Detalles del producto
12000029282180850

Ficha técnica

Hign-concerned Chemical
None
Brand Name
ASROCK
Origin
Mainland China
Certification
CE
Package
No
Application
Desktop
RAID Supported
No
Processor compatibility
Intel 0thers
Usage Scenario
Office
Back I/O Ports
1x RJ45,VGA(D-Sub),HDMI 1.4,DVI-D
Onboard LAN
1x RJ45
Storage Interface Type
SATA
Number of PCI
2
PCI - E standards
PCI - E 3.0
Support Memory Type
DDR3
Maximum Ram Capacity
16 GB
Chipset Manufacturer
Intel
With CPU
Yes
Chipset
Intel H310
Socket Type
Onboard CPU
Quality Certification
ce
Special Features
None
