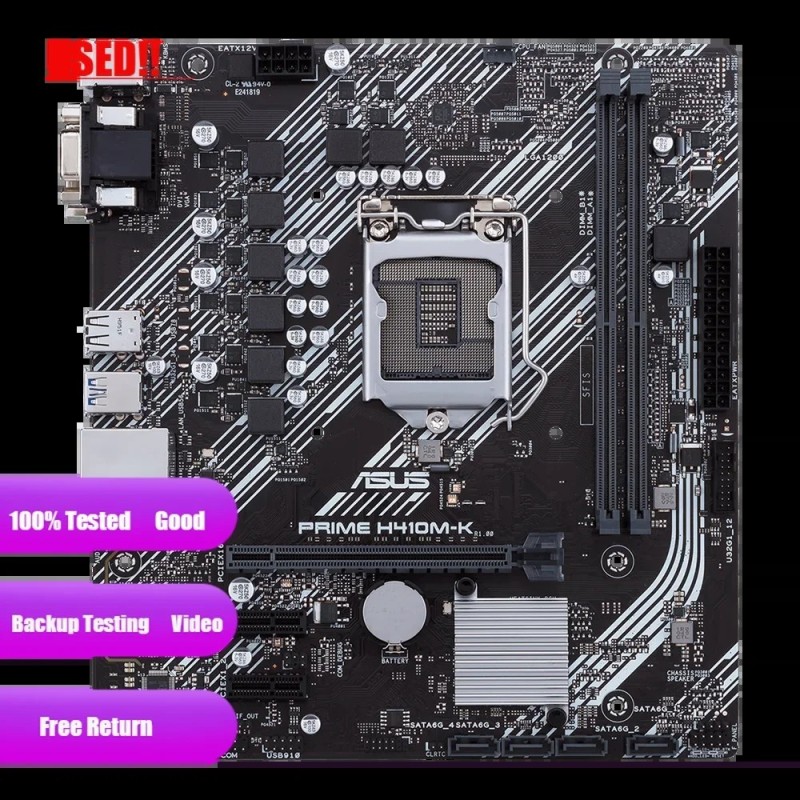

Asus PRIME H410M-K Original Desktop Intel H410 H410M DDR4 Motherboard LGA 1200 i7/i5/i3 USB3.0 M.2 SATA3

CPUIntel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel® H410Memory2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).  GraphicIntegrated Graphics Processor

1  x DVI-D

1  x D-Sub

*Graphics specifications may vary between CPU types.Expansion SlotsIntel® 10th Gen Processors

1 x PCIe 3.0 x16 (x16 mode)

Intel® H410 Chipset

2 x PCIe 3.0 x1StorageTotal supports 4x SATA 6Gb/s ports

Intel® H410 Chipset :

4 x SATA 6Gb/s port(s)LANRealtek® RTL8111HAudioRealtek ALC887/897 7.1-Channel High Definition Audio CODEC *

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Audio Shielding

- Dedicated audio PCB layers

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.USB PortsRear USB Port ( Total 6  )

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 4  )

2 x USB 3.2 Gen 1 port(s)

2 x USB 2.0 port(s)Software FeaturesASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert

- EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ ModeASUS Special FeaturesASUS 5X PROTECTION III

- ASUS DIGI+ VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum heatsink designBack I/O Ports1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 1 Type-A

4 x USB 2.0

3 x Audio jack(s)Internal I/O Ports1 x CPU Fan connector(s)

1 x Chassis Fan connector(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

4 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

1 x Speaker connectorAccessoriesI/O Shield

BIOS128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEOperating SystemWindows® 10 64-bitForm FactormATX Form Factor

8.9  inch x 8.0  inch ( 22.6  cm x 20.3  cm )
