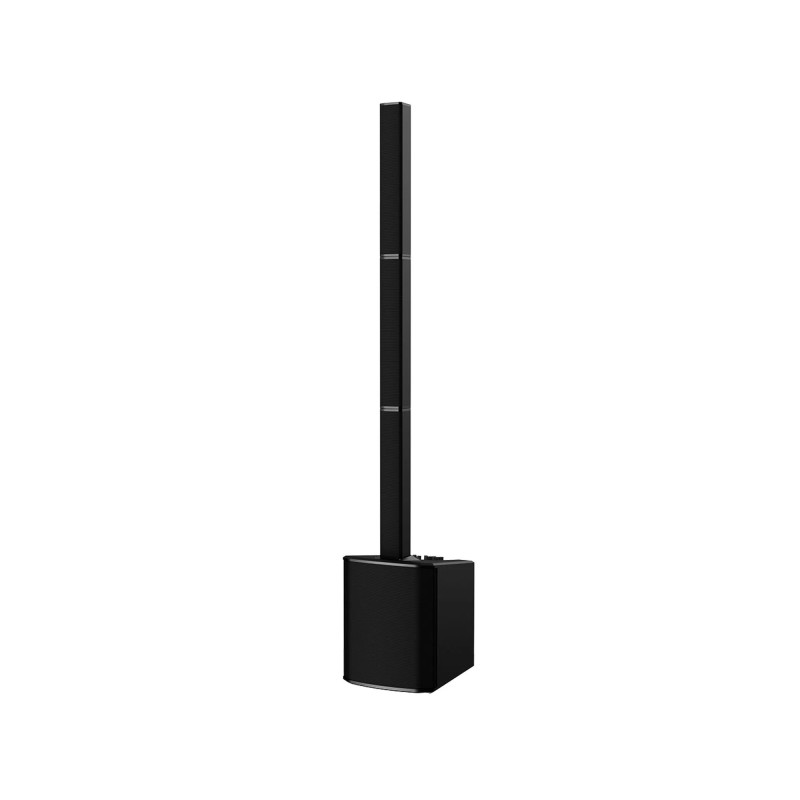

G1 Portable PA System, Portable Line Array Speaker, Columbia PA Speaker System with Integrated Bluetooth and Built-in 6 Channel

1.PORTABLE & EASY TO USE PA SYSTEM – The lightweight,all-in-one design of the SONGCHEER G1 PA system makes it simple to set up, take down, and play. It is ideal for coffee shops, concerts, mobile DJs, classrooms, business

presentations, and other events.

2.PREMIUM FULL-RANGE SOUND & 180° COVERAGE – The G1 portable PA speaker with Bluetooth delivers quality full-range sound with consistent tonal balance and 180-degree wide horizontal coverage for songwriters, mobile DJs, and others.

3.10” SUBWOOFER FOR GREAT PENETRATION – SONGCHEER colum PA system maintains optimum vocal and instrument clarity with a portable line array speaker with a 10" subwoofer with a 6-driver wide dispersion array and ferrite circuitry and delivering crystal clear, space-filling sound with adjustable height to direct sound to the ear for maximum coverage and clarity.

4.PA SYSTEM WITH BEAUTIFUL HIGH-PITCH – The G1 portable PA system is equipped with six 2.75-inch full-range speakers with a lightweight voice coil frame and FEA-optimized magnetic circuit structure, which ensures the clarity

and purity of the high frequencies and delivers crystal clear sound to the audience.

5.BACKPACK INCLUDED FOR EASY CARRYING - Comes with a backpack, G1 PA system is easier to pack, carry and set up for outdoor mobility. If you have any question regarding SONGCHEER G1 portable PA system with Bluetooth and mixer, please feel free to contact us, we are happy to help you!

SONGCHEER G1 PORTABLE PA SYSTEM WITH BLUETOOTH

& 6-CHANNEL MIXER – Elevates the sound quality of your performances and make the show an enjoyment for both artists and audience.

★WHY CHOOSE BRAND G1 PORTABLE PASYSTEM?★

✔ Maximum Portability.

The G1 portable soundbar PA system has an integrated compact and lightweight amplifier. The G1 speaker system is compact enough to fit in the trunk or the backseat.

✔ 6-Channel Mixer.

The built-in 6-channel digital mixer allows you complete control over levels, EQ, reverb, and more through physical knobs or wirelessly on your phone, making it simple to dial in the optimal sound in minutes.
Even music or background music can be streamed from any Bluetooth-enabled device. Ideal for solo performances, bands,

corporate and school events, etc.

✔ BT Stereo Link Feature.

The professional BT stereo link capability permits the connection of a second G1 to create a stereo system.

Now, practically any performance, event, or occasion may have superb audio.

✔ 180° Sound Coverage.

The speaker's unique vertical design distinguishes it from conventional PA speakers and has a good effect on

sound coverage. Even audience members and band members at the venue's perimeter can hear the same crisp, well-balanced sound as those closer to the stage.

✔ All-In-One PA System.

With the G1 PA system, you do not need to carry a separate amplifier, mixer, or subwoofer, as these components

are already integrated.
The power stand of the speaker system is equipped with an integrated subwoofer, amplifier, and mixer with a total of 4 inputs and 2 outputs.

★BASIC INFORMATION★

Size: 75.3*13.5*16.2inch (H*W*D)

Weight: Approx. 38.6LB

Subwoofer Size: 10 inch

Rated Power: 1400W

Mixer: 6-Channel Digital Mixer

For more information about the product, the packaging and our return policy, please don’t hesitate to contact us.

• Frequency range (-10 dB): 60 Hz – 20 kHz

• Frequency Response (+/-3 dB): 75 Hz – 17 kHz

• Power rating 600W (1200W peak)

• Maximum SPL(1M) 121 dB average continuous pink noise (127 dB peak)

• Coverage (V x H) 50° x 100°

• LF Transducer: 10" woofer with ferrite magnetic, rubber-rimmed paper cone, high

temperature fiberglass voice coil former, high temperature voice coil wire,

optimized cone geometry, linear suspension sprung and FEA optimized magnetic

circuit structure design

• HF Transducer: 6x 2.75" full-range speakers with lightweight Kapton™ voice coil

formers, FEA optimized magnetic circuit construction

• Power amplifier: System power 1200W peak

• Low /High frequency power rating 700W peak

• Rated THD <1%

• Convection Cooling Class D Design

• Digital system processing

• DSP mode: LIVE, MUSIC, SPEECH three options

• Crossover type: 24dB/OCT equalization with DSP

• Input CH1 /CH2 channel, 2-band EQ, XLR+1/4" (6.3mm) JACK mixed input,

instrument and microphone can be switched, and the reverb effect can be

adjusted deeply

• Low frequency +15dB/-15dB @80Hz

• High Frequency +15dB/-15dB @10KHz

• Input CH3/4 channel, 2x 1/4”(6.3mm) JACK socket, suitable for keyboard stereo

input

• Input CH5/6 channel, BT Bluetooth wireless stereo input and other equipment

stereo input such as mobile phone, iPAD, etc.

• BT Bluetooth STEREO LINK can be connected with another G1 to form a stereo

sound reinforcement system

• Output MIXOUT, mixed output, can be connected to other sound reinforcement

equipment or another G1

• Subwoofer box, vented box type open box design, 15mm birch plywood material,

surface sprayed with black high-quality emery paint, scratch-resistant and

durable
