OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 De
  • OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 De
  • OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 De
  • OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 De
  • OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 De
  • OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 De
  • OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 De

OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 Degree Adjustable Manual-focus for Face Recognition Projects

12000043479223885
Rating

OV9732 Video Camera Module 1280x720 Camera Module 60/72/100/160/180 Degree Adjustable Manual-focus for Face Recognition Projects

Color
$28.61
Tax included
Quantity
Product available with different options

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

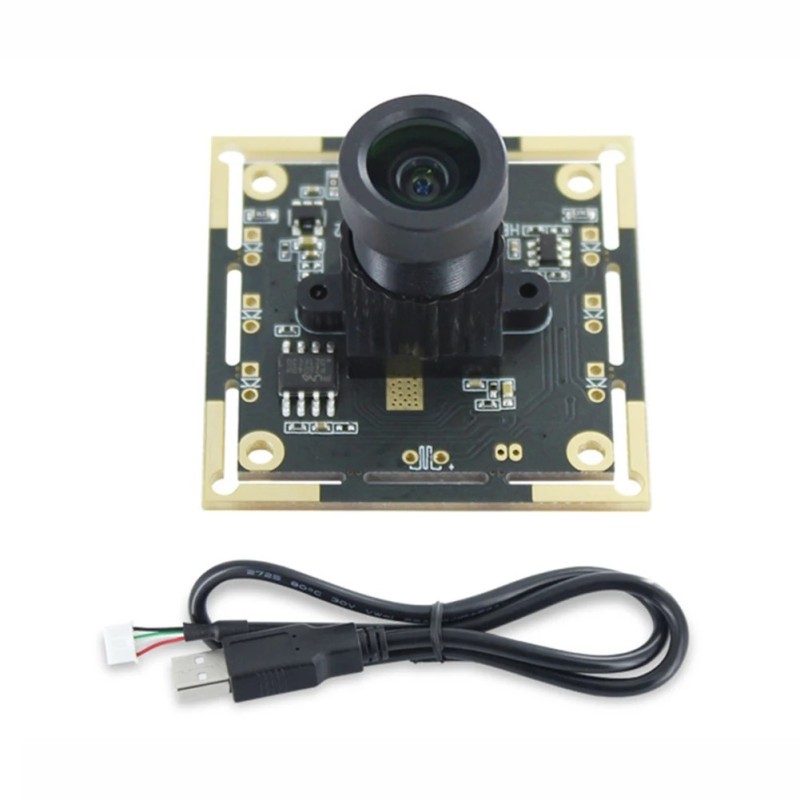

OV9732 Camera Module Board 720P 1MP Lens Monitoring Module 1280x720 60/72/100/160/180 Degree Adjustable Manual-focus MJPG/YUY2 for Face Recognition Projects
Feature:
1. High-Resolution Imaging: The camera module board features a 1-megapixel high-definition lens that delivers clearer, more detailed images. This ensures superior image quality for all your projects and applications.
2. Advanced Sensor Technology: Equipped with the OV9732 high-definition sensor chip, the video camera module offers stable and reliable performance, making it ideal for continuous and demanding use.
3. Wide Viewing Angles: Choose between 72-degree and 100-degree field of view options with the lens monitoring module. This feature provides a broader visual range, allowing for expansive coverage in surveillance and monitoring tasks.
4. Universal Compatibility: The camera module supports a wide range of operating systems including Compatible with WinXP, Win7, Win8, Win10, Linux, and for Android. It is OTG UVC compliant and features a USB interface for driver-free, plug-and-play functionality, making it incredibly versatile and easy to integrate into various setups.
5. Diverse Applications: Ideal for a multitude of applications, the USB camera module is extensively used in fields like license plate recognition, facial recognition, drone aerial photography, high-altitude cameras, QR code access control systems, and robotics, enhancing its utility across different technologies and industries.



Specification:
Origin: Mainland China
Material: ABS
Side length: approx. 38mm/1.5 inches
Type: 60 degrees, 72 degrees, 100 degrees, 160 degrees, 180 degrees (optional)
Model: HVB-W20217-V22
Pixels: 1 million pixels
Photosensitive chip: OV9732(1/4")
Field of view/focal length: 72°/3.6mm
Format: MJPG/YUY2
Resolution: 1280x720
Focus method: manual focus (twisting the lens)
Function introduction: QR code scanning, face recognition
Output interface: USB 2.0
Supported systems: Compatible with WinXP/Win7/Win8/Win10/Linux/ for Android
Cord: Standard 40cm
Working temperature: -20°C~70°C
Fill light: can connect 850/940 infrared light
Product size: 38.00x38.00x23.00mm
Product size: 1.5x1.5x0.91inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.






1 x OV9732 Camera Module (Type optional)












Product Details
12000043479223885

Data sheet

Hign-concerned Chemical
None
Brand Name
APWIKOGER
Origin
Mainland China
Mainland China
Resolution
1280x720
Material
ABS
Model
HVB-W20217-V22
Supported systems
Compatible with WinXP/Win7/Win8/Win10/Linux/for Android
Working Temperature
-20C~70C
Output Interface
USB 2.0
Product Size
38.00x38.00x23.00mm,1.5x1.5x0.91inch
Max. Resolution
1280x720
Pixels
1 million pixels
Fill light
can connect 850/940 infrared light
Format
MJPG/YUY2
Camera Module Board
Video Camera Module
Lens Monitoring Module
Camera Module
Side length
approx. 38mm/1.5 inches
Photosensitive chip
OV9732(1/4")
Field of view/focal length
72/3.6mm
Focus method
manual focus (twisting the lens)
Function introduction
QR code scanning, face recognition
Cord
Standard 40cm
