Motherboard+CPU+RAM: SY-X99 D4+E5 2680 V4 CPU*DDR4 16G*2

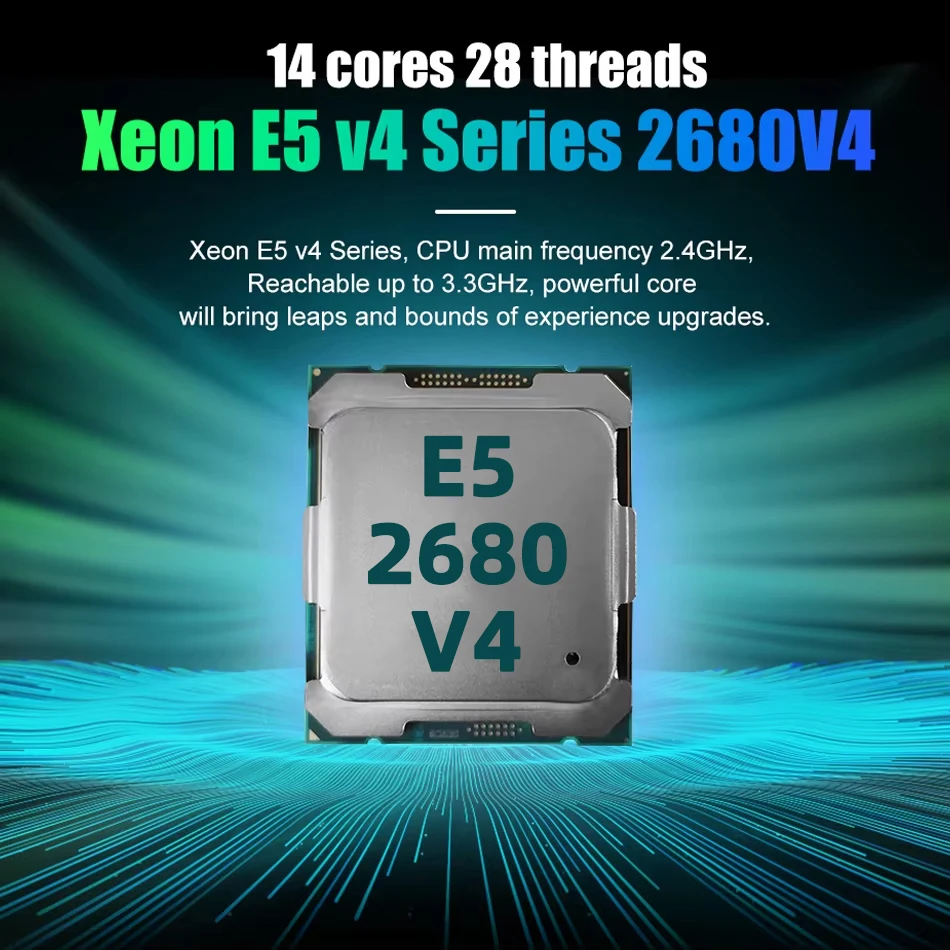

CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
The CPU is used , please don't buy it if you mind
Specification:
Motherboard chip Intel C612
CPU LGA 2011-3 pin series CPU
Memory 4*DDR4 DIMM, 2400MHz/maximum support 128G (green memory slot is the main channel)
Deposit 1*M.2 slots (NVME/SATA protocol, need to switch to skip); 3*SATA3.0 interface
Display interface PCIE1 X16 slot to access the graphics card display
Network 1*RJ45 interface
Network card chip Realtek Gigabit network card chip
PCIE slot 1*PCIE X16 slot; 1*PCIE X1 slot
Audio 1*Line out; 1*Mic In; 1*Line In; 1*F_Audio built-in pin
Audio chip Realtek ALC887 HD audio chip
Serial port Built-in serial port only supports RS232 mode
PS/2 interface 1*PS/2 keyboard and mouse interface
USB interface IO interface: 4*USB2.0/2*USB3.0
Built-in pins: 1 set of USB2.0 pins/1 set of USB3.0 pins (expandable 2 USB2.0 ports, 2 USB3.0 ports)
Function pin 1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan; 1*TPM pin
Power input 24Pin+8Pin ATX power socket
Product size 190 x 216 mm x 4L; M-ATX motherboard
Working temperature -10℃~60℃
Working humidity requirements 10%~90% non-condensing
Storage temperature -25℃~70℃
Power consumption Standby power consumption: 50~80W full load power consumption: 180~290W (for reference only)
